Precision. Intelligence. The Future of Industrial Printing.

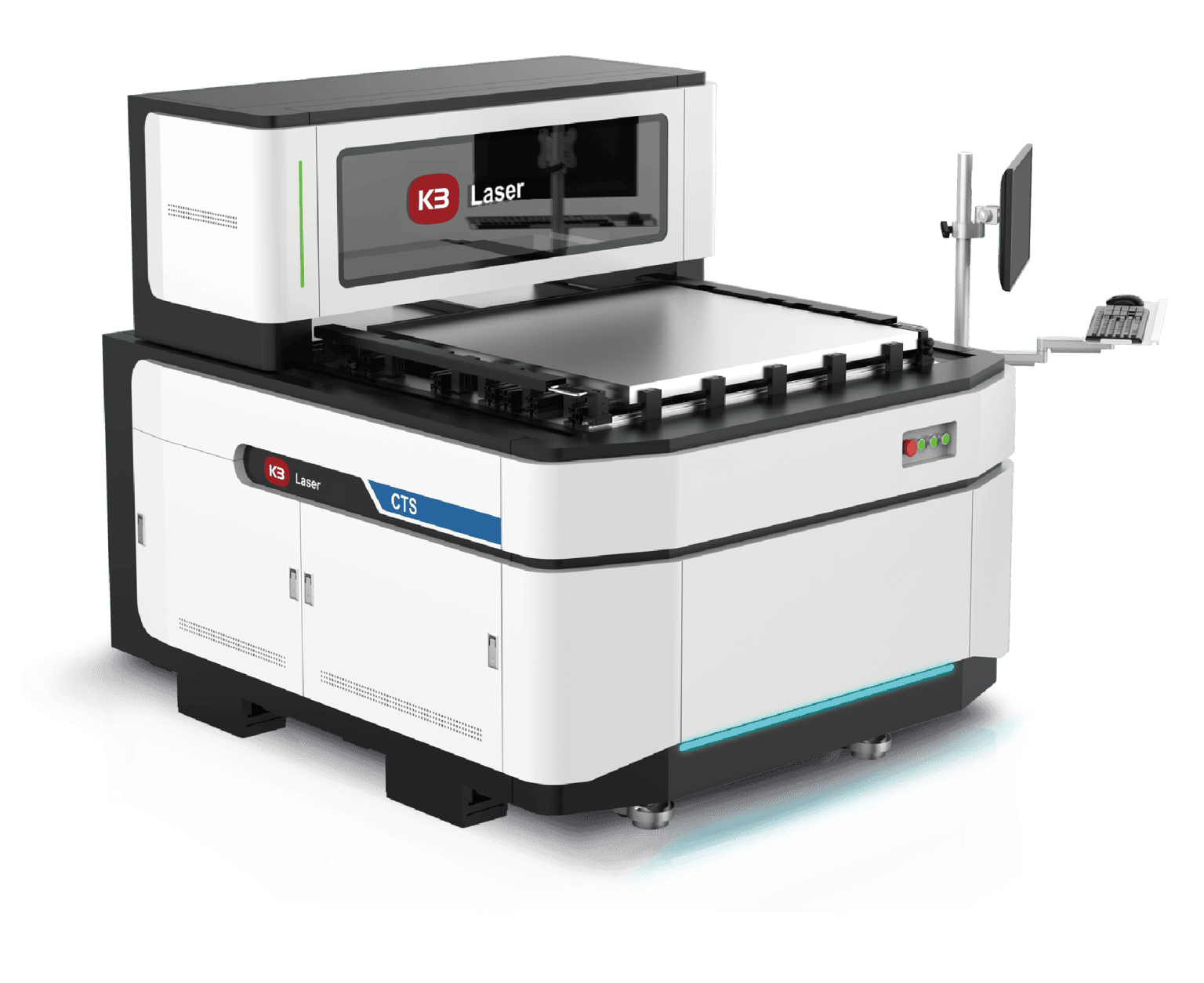

The CTS1213 Computer-to-Screen (CTS) Imaging System is a high-precision digital screen imaging solution designed for professional screen printing applications.
By using advanced DMD digital micromirror technology combined with a 405nm UV laser exposure system, the CTS1213 can directly transfer digital images onto coated screen emulsions without the need for traditional film output. This significantly improves screen preparation efficiency and image accuracy.
With high-resolution imaging capability, a stable mechanical structure, and an intelligent operating system, the CTS1213 is suitable for high-precision screen making applications in textile printing, heat transfer labels, silicone label printing, packaging printing, PCB manufacturing, and industrial screen printing.
Compared with traditional screen preparation processes, CTS direct imaging technology eliminates intermediate steps such as film output, improves screen production consistency, reduces preparation time, and helps printing companies achieve higher production efficiency and better printing quality.
No film output is required. Digital files can be directly converted into screen images, simplifying the traditional screen-making process, reducing manual operation errors, and improving production efficiency and consistency.
Equipped with advanced DMD digital imaging technology and a 405nm UV laser system, the CTS1213 delivers stable and clear image output, meeting the requirements of fine patterns, detailed lines, and high-quality screen printing applications.
The machine adopts a high-strength steel frame structure with precision machining and optimized mechanical design, ensuring stable operation over long production periods and minimizing accuracy deviations caused by structural changes.
The system supports multiple industry-standard file formats with a simple and user-friendly interface, allowing companies to complete digital screen production quickly and efficiently.
| Specification | CTS1213 |
|---|---|
| Model | CTS1213 |
| Maximum Screen Frame Size | 1200 × 1300 mm |
| Minimum Screen Frame Size | 400 × 400 mm |
| Maximum Imaging Area | 1100 × 1200 mm |
| Screen Frame Thickness | 25–40 mm (Custom service available) |
| Imaging Technology | DMD DLP Digital Imaging Technology |
| Emulsion Thickness (EOM) | 10–900 μm (Specified SBQ emulsion, including screen frame) |
| Exposure Time | 120–240 s/㎡ (#350 yellow mesh) |
| Resolution | 1270 dpi / 2540 dpi / 12700 dpi (Vector mode optional) |
| Raster | Up to 133 lines |
| Focus System | Dynamic Auto Focus System |
| Supported File Formats | 1-bit TIFF, Gerber, PDF Vector, etc. |
| Laser Type | UV 405nm ± 5nm |
| Laser Power | 20W / 25W / 30W (Optional) |
| Machine Structure | High-strength Steel Frame Structure |
| Machine Dimensions | 2150 × 1860 × 1550 mm |
| Machine Weight | Approx. 1500 kg |
| Working Environment | Temperature: 22 ± 2°CRelative Humidity: 40–70% RH (Non-condensing)A Class 100,000 clean yellow-light room is recommended |
| Power Supply | Single phase AC 220V, 50/60Hz, 4kW |
| Compressed Air | 0.5 MPa |
Garment printing: High-precision plate output, with supporting equipment design.
Packaging printing: Fast plate-making to improve batch production efficiency.
Label printing: Fine line and small text clarity realization.
PCB/Optoelectronics: High-resolution exposure to meet the requirements of precision electronic components.
